MC9100 Economical Conference System

Product number:1065213866523906048

零售价

$ 0

市场价

$ 0


Each system host is connected to up to 60 microphone units, series output in 3 channels.

重量

0

kg

  • Product Description

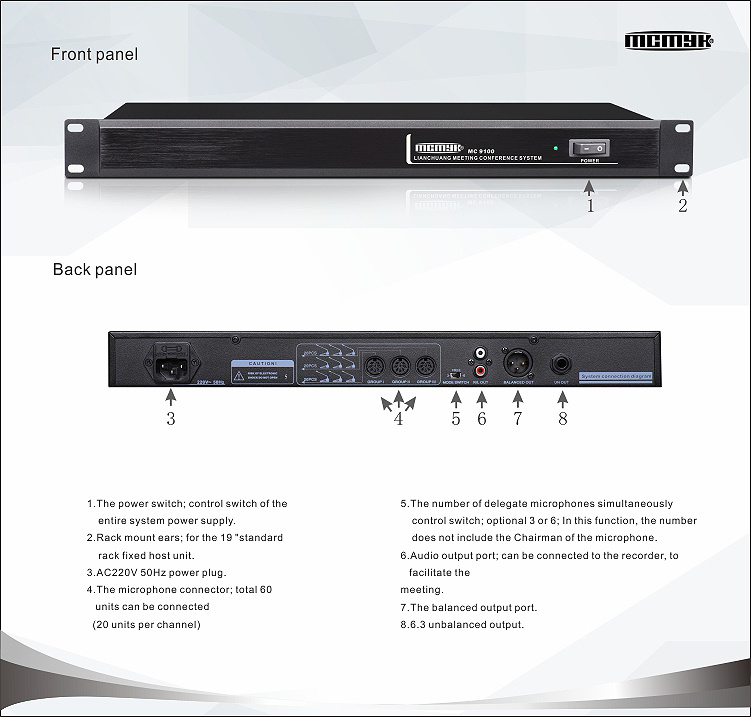

  • MC9100 central processor
    -Each system host is connected to up to 60 microphone units, series output in 3 channels.
    -Limit switch for number of microphones operating simultaneously and used in “responder” games.
    -Parallel audio output and 6.3 jack output interface
    -Recording output interface during conference
    Rated voltage: AC220V±10% 50Hz
    Frequency response: 20Hz-20KHz
    Output impedance: REC: 200Ω
              LINE:200Ω
              BALANCE:300Ω
              NOBALANCE:400Ω
    SNR: 78dB (1KHz THD1%)
    Dimensions: 482X218X43mm (19” international standard rack)
    Net weight: 3.2KG

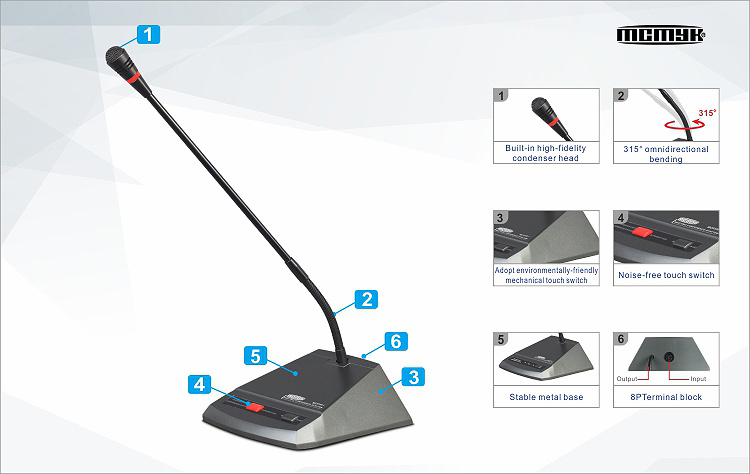

    MC9100-1 Chairman unit MC9100-2 Delegate unit
    Built-in Hi-Fi condenser sound head, excellent sound reproduction, high articulation and low noise
    Efficient whistling inhibition function, powerful pickup
    Microphone ON/OFF ultra-long service life, touch switch
    Sound head blue operating indicator light is illuminating when the microphone is enabled
    The chairman unit is installed with priority speech switch, which can switch off all delegate units when needed
    315-degree single-section omnidirectional bending flexible stainless-steel tube

    Specifications and parameters
    Type: condenser
    Directivity: unidirectional
    Frequency response: 20 Hz-20 KHz
    Sensitivity: -47±2dB @ 1KHz
    Input voltage: DC 18V (powered by host unit)
    Minimum output impedance: 1KΩ
    SNR: 68dB(A)
    Output socket: 8P terminal base
    Data transmission cable: 2.1m 8P shielded cable
    Net weigth of microphone: 0.8Kg
    Accessory: windproof sponge
