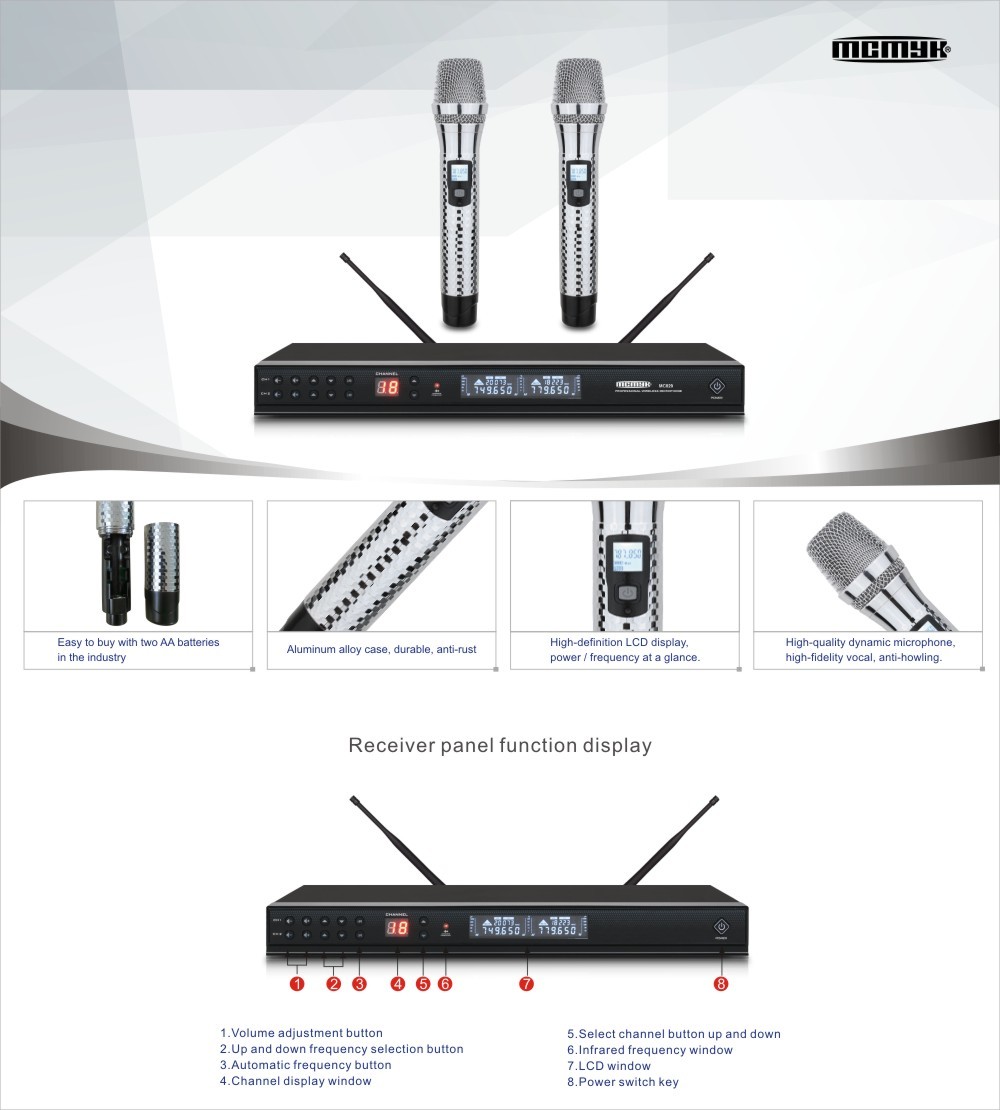

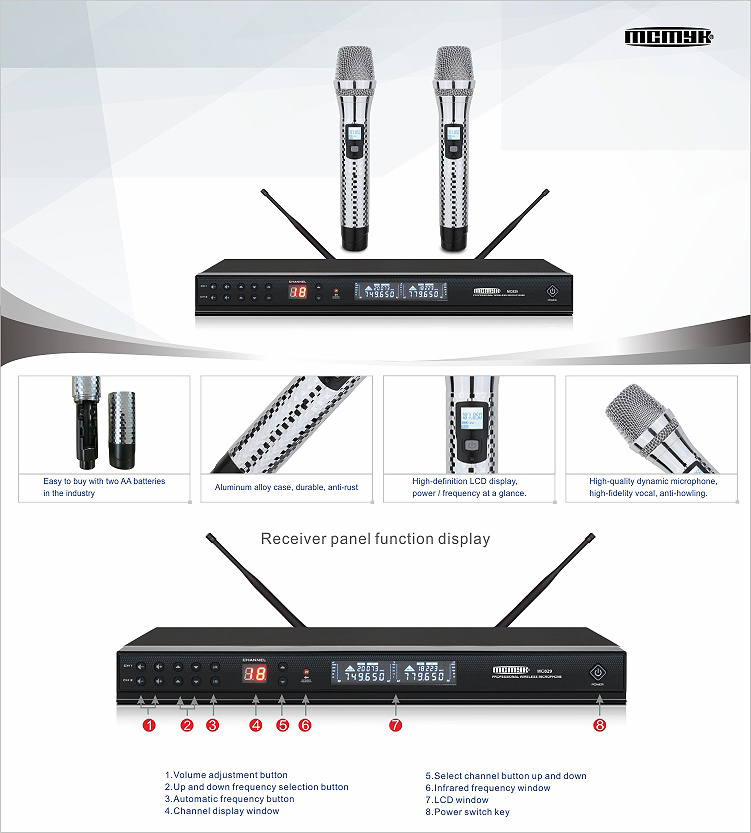

MC829 UHF Wireless Microphone

Product number:1065213385923776512

零售价

$ 0

市场价

$ 0


Smart dormancy wakeup system, prevent whistling, smart power management system and enhanced duration

重量

0

kg

  • Product Description
  • Characteristics:
    1. Smart dormancy wakeup system, prevent whistling, smart power management system and enhanced duration
    2. One-key automatic idle frequency searching points and one-key key locking function
    3. 23-stage electronic volume control, simple configurations
    4. Clear and articulated sound quality, without crosstalk if multiple sets used simultaneously.
    5. 300 sets of optional frequency points to meet simultaneous operation of 150 sets, general for handheld microphone and ordinary microphone and powerful capabilities against interference
    6. Transmitting LCD displays channels and battery capacity, low voltage twinkles until 1.8V and turning off.
    7. The transmitter is adjusted in 2 stages, 30m for low power and 60m for high power.
    8. Applicable for luxurious KTV, night club and high-end entertainment etc.

    The handheld, clip and head-mounting are optional

    System indexes:
    Range of frequency: 735-795MHz
    Mode of modulation: broadband FM
    Range of adjustment: 60MHz
    Channel number: 300
    Channel interval: 200KHz
    Frequency stability: within ±0.005%
    Dynamic range: >105dB
    Maximum frequency deviation: ±45KHz
    Audio response: 40Hz-18KHz(±3dB)
    Total SNR: >110dB
    Total distortion: ≤0.2%
    Operating temperature: -25℃--+40℃

    Receiver indexes:
    Receiving mode: secondary frequency conversion super heterodyne
    Input power: 5W
    Intermediate frequency: 1st intermediate frequency: 110MHz; 2nd intermediate frequency: 10.7MHz
    Wireless interface: BNC/50Ω
    Sensitivity: 12 dBμV (80dBS/N)
    Range of sensitivity adjustment: 10-32dBμV
    Spurious suppression: ≥95dB
    Maximum output level: +10 dBV

    Transmitter indexes:
    Antenna program: wearing transmitter 1/4 wavelength chip antenna and handheld microphone built-in antenna
    Output power: 20mW
    Spurious suppression: -60dB
    Power supply: 2 pieces of AA batteries
    Duration: approximately 8-10 hours


    Keywords:
    • Wireless microphone
    • handheld micropohone
    • KTV microphone
