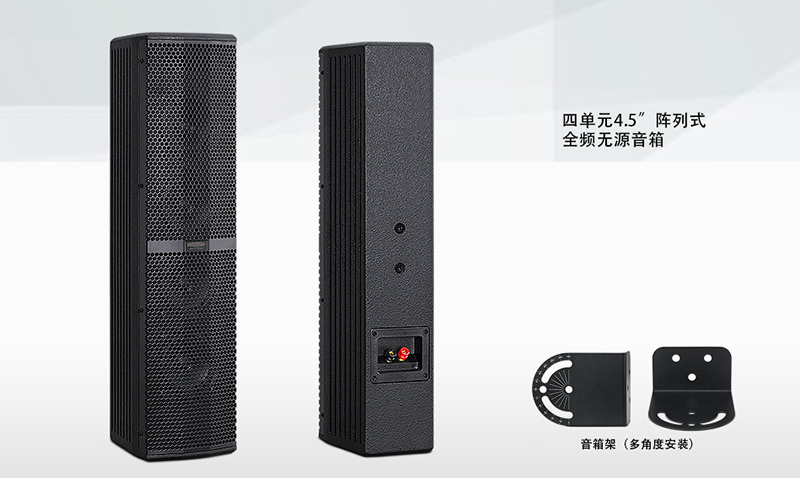

M-7704 4.5” Array Type Full-range Passive Speaker

Product serial number
Full-range passive speakers for professional conferences bring you realistic sound reduction effects. Wall-mounted installation, two exquisite speaker racks are standard, and the intimate speaker rack protractor degree design makes the installation and adjustment angle more precise and convenient. Suitable for large/medium/small meeting rooms, banquet halls, classrooms and other occasions.
M-7704
Product description
Parameters
Full-frequency passive speakers for professional conferences, bringing you realistic sound reproduction effects. Wall-mounted installation, two exquisite speaker racks are standard, and the intimate speaker rack protractor degree design makes the installation and adjustment angle more precise and convenient. Suitable for large/medium/small meeting rooms, banquet halls, classrooms and other occasions.
• Four-unit 4.5" full-range passive speaker array
• 100° * 20° pointing
• 6 M8 lifting points
• 1.0mm high-strength steel mesh
• 1.0mm thick 5mm hexagonal hole iron net, the surface is sprayed with black flat powder
• The surface of the box body is sprayed with black wear-resistant water-based paint

Specifications


Woofer
Four specially developed 4.5-inch low frequency drivers

90mm ferrite magnet, 25mm voice coil

Cabinet:

Dumbbell structure speaker

horn

100x20 degree constant pointing horn

Connecting device

Gold-plated banana plug

system:

1 channel full frequency

Rated impedance

8Ω

power

RMS 200W (Peak 400W)

Sensitivity 1W/1m

91dB

Maximum sound pressure

114dB

Frequency response

100Hz ~ 18KHz

Directivity (H*V)

100°x20°

Product size (W×D×H)

150x180x622mm

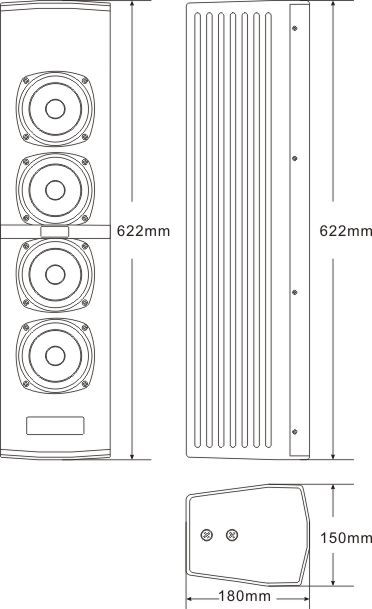

Speaker size chart

We could not find any corresponding parameters, please add them to the properties table
