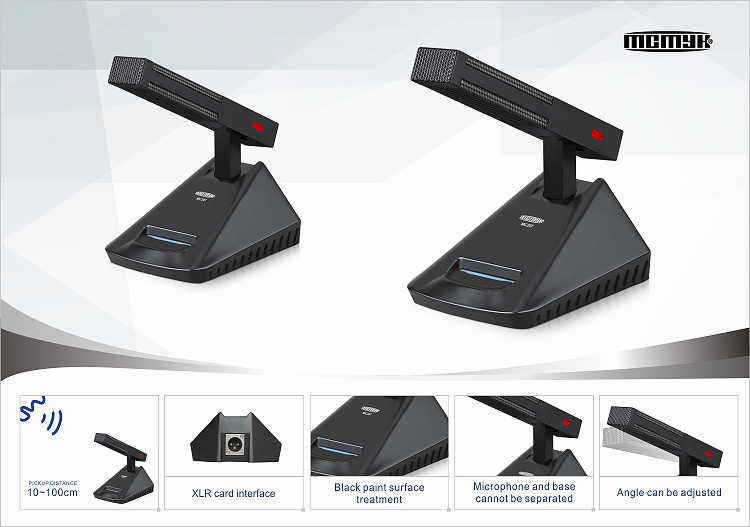

MC287 Condenser Conference Microphone
The exquisite and elegant short-stem structure conforms with human engineering science and is of modern nature.
The microphone pickup head taken acoustic space requirements (sensitivity, directivity factor and director coefficient) into account reproduces better sound and reaches further pickup distance.
It is designed for reinforced pickup, conference, TV and broadcasting, professional recording and other pickup applications with high quality requirements.
Electret condenser cardioid directional microphone
Powerful capability against mobile phone disturbance
Built-in sound head preamplification power supply and amplifier assembly externally connected to D.C. 48V phantom power supply for operation.
Built-in high-quality low-frequency attenuation circuit
Simple and quick installation.
Low-impedance balanced audio output.
The desktop microphone based used with other 3-pin Cannon male microphone devices.
Specifications and parameters
Frequency response: 50Hz-17KHz
Sensitivity: -45dB/±3dB (1KHz)
Low-frequency attenuation: 125Hz 6dB/OCTAVE
Output impedance: 200Ω
Maximum withstanding sound pressure: 135dB SPL 1KHz AT1% T.H.D
SNR: 66dB.1KHz AT 1PA
Dynamic range: 111dB.1KHz AT MAX SPL
Power supply: DC 48V
Output connector: built-in 3-pin Cannon male connector
Lead wire length: 10m (balanced)
Accessories: 10m parallel wires
