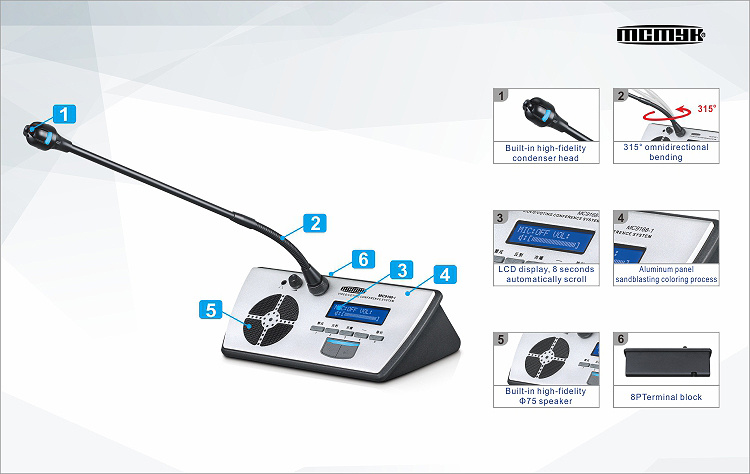

MC9168 Multifunctional Digital Conference System
MC9168-1 Chairman unit MC9168-2 Delegate unit
Video tracking/voting/scoring and election/discussion and amplification functions
Zinc alloy casting base, aluminum alloy sand blasting and coloring process panel, elegant and stable
HD LCD displays: voting result/microphone on/off status and dynamic level and volume control
Various operating modes: limit/FIFO/free/chairman priority modes.
Various holder camera ball control protocols: Pelco_P VISCA_SONY-D70 SAMSUNG Pelco _D protocols.
Microphone built-in SCM control circuit
Ultra-long service life, noise-free touch switch
Hi-Fi dual-track loudspeaker and dual-track earphone jack
315-degree single-section omnidirectional bending flexible stainless-steel tube
Built-in Hi-Fi condenser sound head makes excellent sound production, high articulation and low noise
Efficient whistling inhibition function, powerful pickup
With microphone switched on, the blue sound head operating indicator is illuminating
The chairman unit with priority speech switch to switch off all attended delegate units when needed.
Specifications and parameters
Frequency response: 50 Hz-14 KHz
Sensitivity: -45±2dB @ 1KHz
Input voltage: DC 24V (powered by central processor)
Minimum output impedance: 1KΩ
Output socket: 8P terminal base
Input lead wire: 2.1m 8P shielded wire
Accessory: windproof sponge cover
