MC91632 Multifunctional Digital Conference System

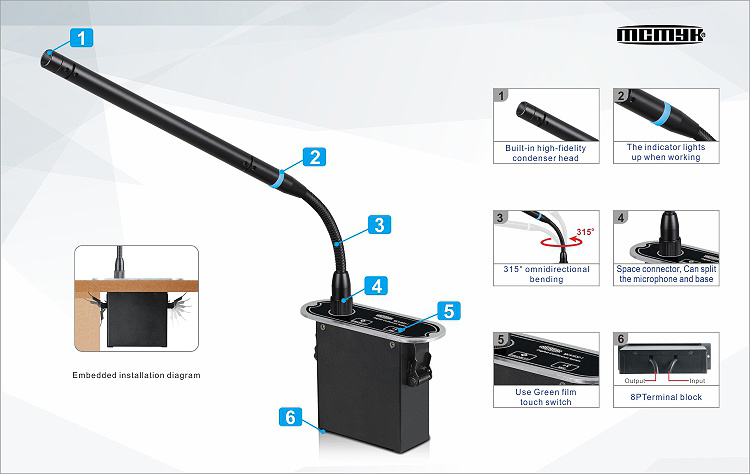

MC91632-1 Chairman unit MC91632-2 Delegate unit
Built-in SCM control circuit for digitalized management and high-speed holder camera ball for automatic tracking and photography.
Aluminum panel coloring drawing process and embedded installation.
Aviation connector, dismountable microphone.
Environmental protection low-power sealing touch inductive switch, more precise and low noise.
Built-in Hi-Fi condenser sound head reproduces sound better, resulting in high articulation and low noise.
Efficient whistling inhibition function, powerful pickup sound
With microphone switched on, the blue operating indicator of the sound head is illuminating, the switch key and logo are changed to the color of operating mode.
The chairman unit with priority speech switch to switch off all attended delegate units when needed.
The unit is completed with 2m 8-core aluminum foil shielding connecting wire to reduce interference on wires by electromagnetic wave.
Various speech modes of “FIFO”/ “free mode”/ “Chairman mode”/ “Limit mode” are available.
Specifications and parameters
Frequency response: 50 Hz-14 KHz
Sensitivity: -45±2dB @ 1KHz
Input voltage: DC 24V (powered by central processor)
Minimum output impedance: 1KΩ
Output socket: 8P terminal base
Input lead wire: 2.1m 8P shielded wire
Accessory: windproof sponge cover
