Wireless Conference microphone

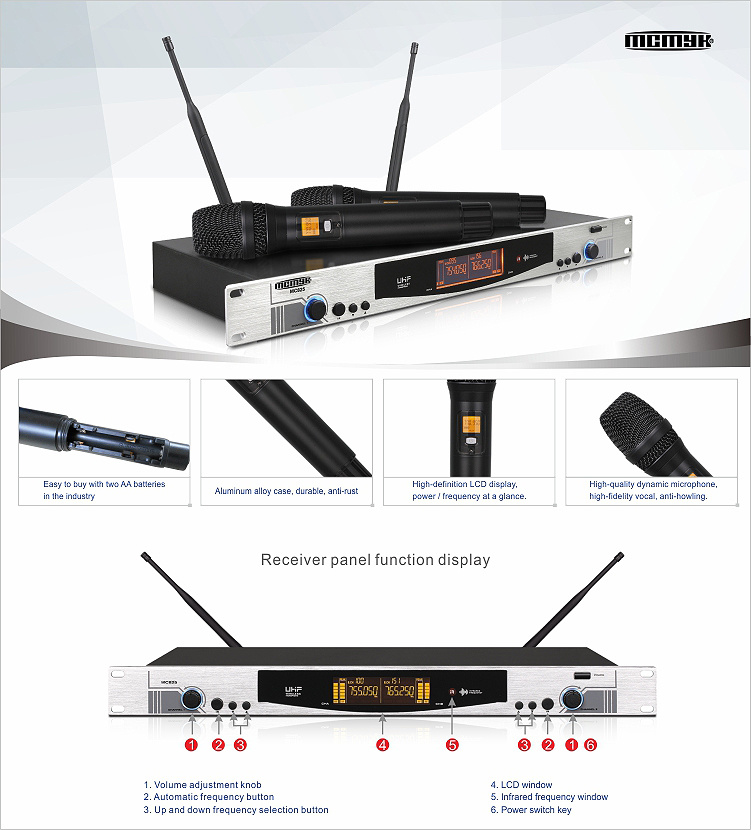

MC825 UHF wireless microphone
Product serial number
Product description
Parameters
Characteristics:
1. Dual-channel receiving, UHF frequency band and PLL digital frequency
2. 300 groups of optional frequency points for simultaneous operation of 150 sets and general for handheld microphones and strong capabilities against interference
3. The transmitting LCD displays channels and battery capacity, battery low-voltage twinkling until automatic switching-off at 1.8V
4. The receiving channel LCD displays: frequency and channel, RF strength, mute, partial electrode within antenna and index adjustment within menu
5. The transmitter is adjusted at 2-stage power, 30m for low power and 60m for high power
6. Applicable for stages, conference halls and KTV chartered rooms of various dimensions
1. Dual-channel receiving, UHF frequency band and PLL digital frequency
2. 300 groups of optional frequency points for simultaneous operation of 150 sets and general for handheld microphones and strong capabilities against interference
3. The transmitting LCD displays channels and battery capacity, battery low-voltage twinkling until automatic switching-off at 1.8V
4. The receiving channel LCD displays: frequency and channel, RF strength, mute, partial electrode within antenna and index adjustment within menu
5. The transmitter is adjusted at 2-stage power, 30m for low power and 60m for high power
6. Applicable for stages, conference halls and KTV chartered rooms of various dimensions
System indexes:
Range of frequency: 735-795MHz
Modulating mode: broadband FM
Scope of modulating: 60MHz
Channel number: 300
Channel interval: 200KHz
Frequency stability: within ±0.005%
Dynamic range: >105dB
Maximum frequency deviation: ±45KHz
Audio response: 40Hz-18KHz(±3dB)
Total SNR: >110dB
Total distortion: ≤0.2%
Operating temperature: -25℃--+40℃
Range of frequency: 735-795MHz
Modulating mode: broadband FM
Scope of modulating: 60MHz
Channel number: 300
Channel interval: 200KHz
Frequency stability: within ±0.005%
Dynamic range: >105dB
Maximum frequency deviation: ±45KHz
Audio response: 40Hz-18KHz(±3dB)
Total SNR: >110dB
Total distortion: ≤0.2%
Operating temperature: -25℃--+40℃
Receiver indexes:
Receiver mode: double conversion super heterodyne
Input power: 5W
Intermediate frequency: 1st intermediate frequency: 110MHz, 2nd intermediate frequency: 10.7MHz
Wireless interface: BNC/50Ω
Sensitivity: 12 dBμV (80dBS/N)
Range of sensitivity adjustment: 10-32dBμV
Spurious suppression: ≥95dB
Maximum output level: +10 dBV
Receiver mode: double conversion super heterodyne
Input power: 5W
Intermediate frequency: 1st intermediate frequency: 110MHz, 2nd intermediate frequency: 10.7MHz
Wireless interface: BNC/50Ω
Sensitivity: 12 dBμV (80dBS/N)
Range of sensitivity adjustment: 10-32dBμV
Spurious suppression: ≥95dB
Maximum output level: +10 dBV
Transmitter indexes:
Antenna: wearing transmitter with 1/4 wavelength whip antenna and handheld microphone with built-in antenna
Output power: 20mW
Spurious suppression: -60dB
Power supply: 2 pieces of AA battery
Duration: approximately 8-10 hours
Antenna: wearing transmitter with 1/4 wavelength whip antenna and handheld microphone with built-in antenna
Output power: 20mW
Spurious suppression: -60dB
Power supply: 2 pieces of AA battery
Duration: approximately 8-10 hours
