Wireless Conference microphone

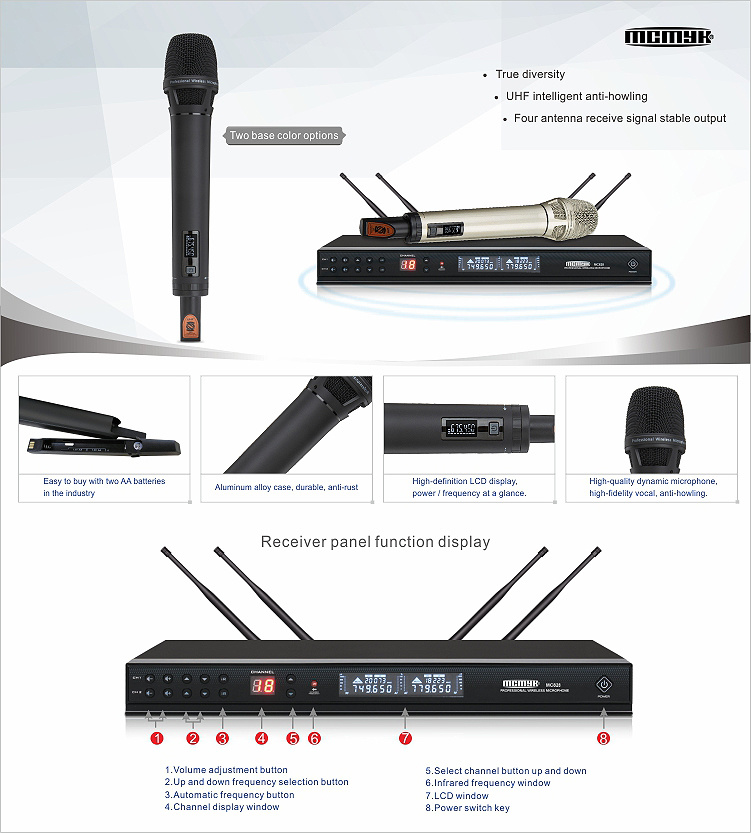

MC828 4-antenna true diversity remote distance wireless microphone
Product serial number
Product description
Parameters
1. 23-stage electronic volume control, simple configurations
2. True diversity receiving technology, maximum operation distance under open area 300m
3. One-key automatic idle frequency searching points and one-key key locking function
4. 300 sets of frequency point infrared frequency pairing, general for handheld microphone and ordinary microphone, powerful capability against interference
5. Transmitting LCD displays channels and battery capacity, low voltage twinkles until 1.8V and turning off.
6. The return whistling inhibition impairment function is available to reduce return whistling.
7. Applicable for large and small-sized stages and conference hall etc.
2. True diversity receiving technology, maximum operation distance under open area 300m
3. One-key automatic idle frequency searching points and one-key key locking function
4. 300 sets of frequency point infrared frequency pairing, general for handheld microphone and ordinary microphone, powerful capability against interference
5. Transmitting LCD displays channels and battery capacity, low voltage twinkles until 1.8V and turning off.
6. The return whistling inhibition impairment function is available to reduce return whistling.
7. Applicable for large and small-sized stages and conference hall etc.

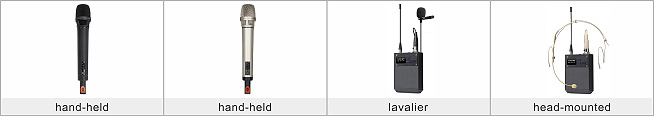

Handheld, clip and head-mounting are optional
System indexes:
Range of frequency: 735-795MHz
Mode of modulation: broadband FM
Range of adjustment: 60MHz
Channel number: 300
Channel interval: 200KHz
Frequency stability: within ±0.005%
Dynamic range: >105dB
Maximum frequency deviation: ±45KHz
Audio response: 40Hz-18KHz(±3dB)
Total SNR: >110dB
Total distortion: ≤0.2%
Operating temperature: -25℃--+40℃
Range of frequency: 735-795MHz
Mode of modulation: broadband FM
Range of adjustment: 60MHz
Channel number: 300
Channel interval: 200KHz
Frequency stability: within ±0.005%
Dynamic range: >105dB
Maximum frequency deviation: ±45KHz
Audio response: 40Hz-18KHz(±3dB)
Total SNR: >110dB
Total distortion: ≤0.2%
Operating temperature: -25℃--+40℃
Receiver indexes:
Receiving mode: secondary frequency conversion super heterodyne
Receiving mode: secondary frequency conversion super heterodyne
Input power: 5W
Intermediate frequency: 1st intermediate frequency: 110MHz; 2nd intermediate frequency: 10.7MHz
Wireless interface: BNC/50Ω
Sensitivity: 12 dBμV (80dBS/N)
Range of sensitivity adjustment: 10-32dBμV
Spurious suppression: ≥95dB
Maximum output level: +10 dBV
Intermediate frequency: 1st intermediate frequency: 110MHz; 2nd intermediate frequency: 10.7MHz
Wireless interface: BNC/50Ω
Sensitivity: 12 dBμV (80dBS/N)
Range of sensitivity adjustment: 10-32dBμV
Spurious suppression: ≥95dB
Maximum output level: +10 dBV
Transmitter indexes:
Antenna program: wearing transmitter 1/4 wavelength chip antenna and handheld microphone built-in antenna
Output power: 20mW
Spurious suppression: -60dB
Power supply: 2 pieces of AA batteries
Duration: approximately 8-10 hours
Antenna program: wearing transmitter 1/4 wavelength chip antenna and handheld microphone built-in antenna
Output power: 20mW
Spurious suppression: -60dB
Power supply: 2 pieces of AA batteries
Duration: approximately 8-10 hours
