Wireless Conference microphone
MC233

MC233 condenser conference microphone

Product serial number

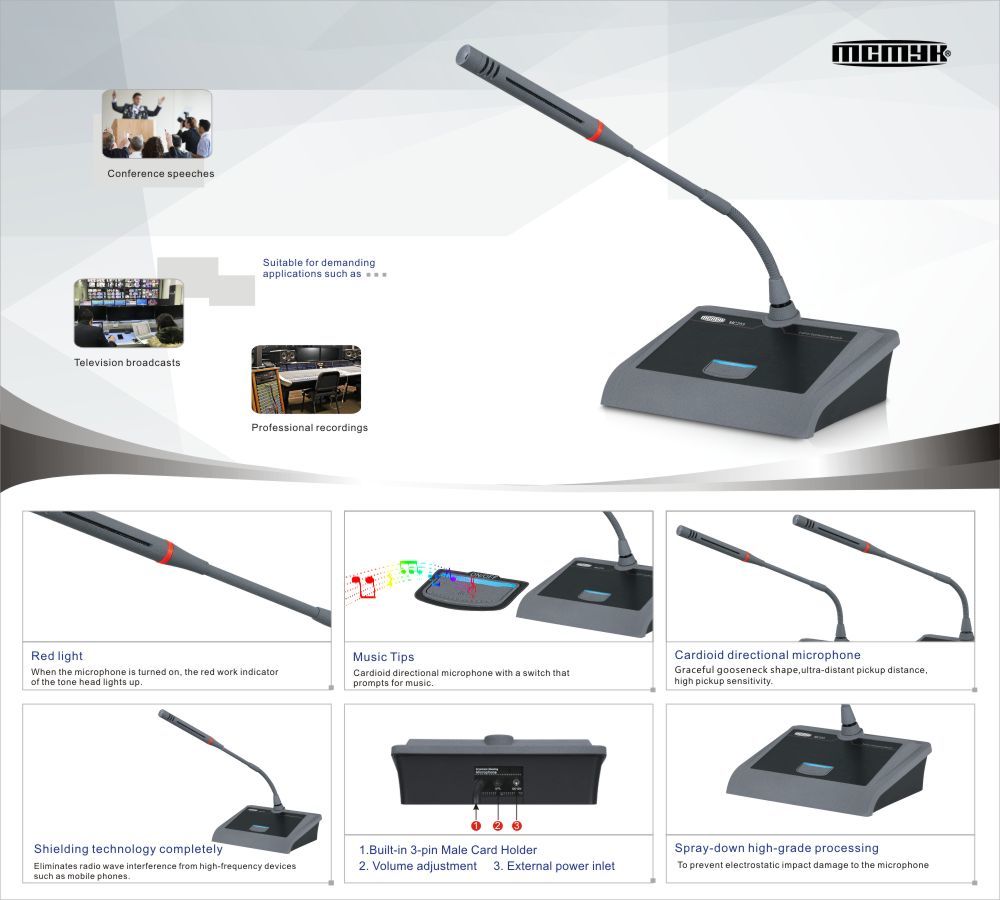

The series gooseneck microphone is a condenser cardioid directional microphone with ultra-wide frequency with switch ding-dong music function.
MC233
Product description
Parameters

The series gooseneck microphone is a condenser cardioid directional microphone with ultra-wide frequency with switch ding-dong music function.
High-quality sound receiving performance is designed for reinforced sound receiving, professional recording, TV and broadcasting, conference and other sound receiving applications with high requirements.
The windproof sponge cover lowers air jetting sound and other wind sound during speech.
High-end flocking process treatment prevents impact on and damage to microphone more effectively.
The reinforced shielded technology completely prevents radio interference by mobile phone and other high-frequency devices.
The microphone supports 2 pieces of 3A batteries, 48V power supply or direct 220V power supply.

Specifications and parameters
Directivity: cardioid unidirectional
Frequency response: 30-18,000 Hz
High-pass filtering: 80 Hz, 18 dB/octave
Enabling sensitivity: -40 dB (10.0 mV) at 1V 1Pa
Output impedance: 250Ohm
Maximum withstanding sound pressure: 127dB sound press, 1 kHz at 1% THD
Dynamic range (typical): 102 dB, 1 kHz at maximum sound pressure
SNR: 62dB, 1 kHz at 1Pa
Switch: straight, high-pass filtering; GS series mute/enabled
Phantom power supply D.C.: DC3-48V (12V built-out power supply) power consumption 4mA typical
Output connector: built-in 3-pin Cannon male connector
Sound pickup distance: 10cm~30cm preferred



We could not find any corresponding parameters, please add them to the properties table
